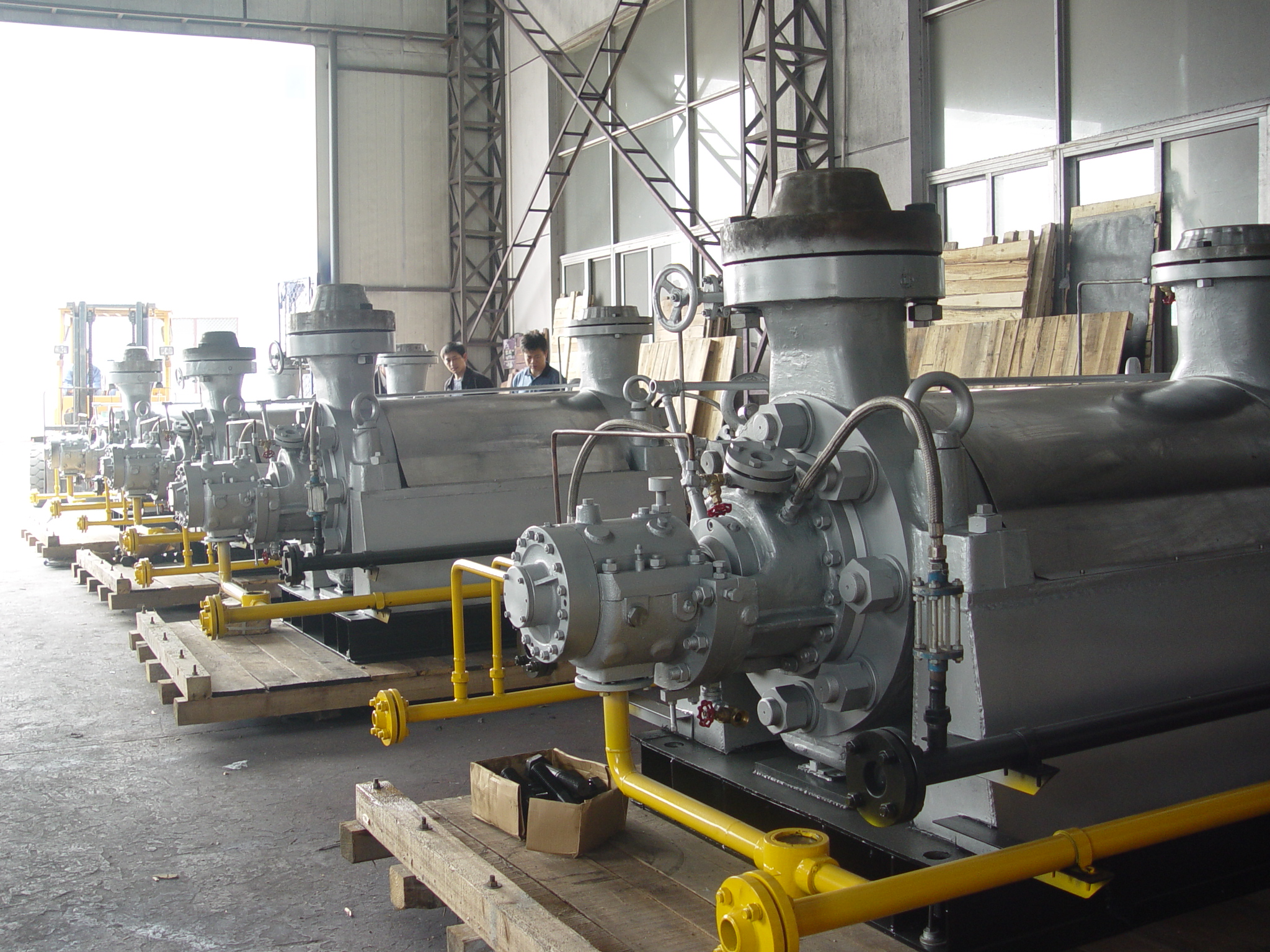

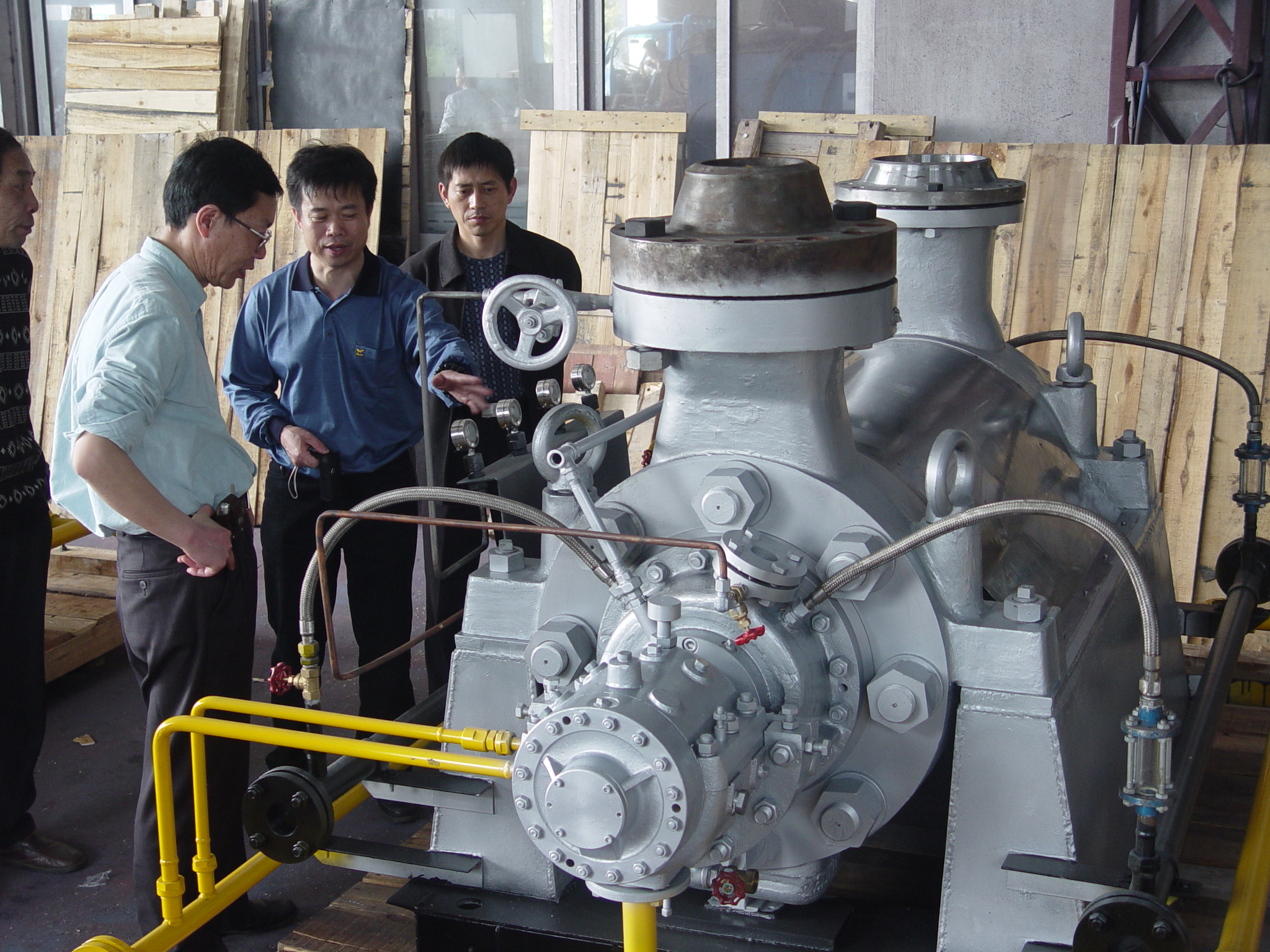

Product overview
DG boiler feed water pump is a horizontal multi-stage centrifugal pump, which is suitable for conveying clean water (containing impurities)
Less than 1%, particle size less than 0.1mm) and other liquids with physical and chemical properties similar to clear water.
1. The temperature of the feed water pump of DG medium and low pressure boiler is not more than 105℃, which is suitable for small-sized boilers.
Boiler water supply or transportation is similar to hot water and other occasions.
2, DG type secondary high pressure boiler feed water pump conveying medium temperature is not more than 160℃, suitable for small.
Boiler water supply or transportation is similar to hot water and other occasions.
3, DG type high pressure boiler feed water pump conveying medium temperature is not more than 170℃, can be used as a pressure cooker.
Used for boiler feed water or other high-pressure fresh water pumps.
Performance range
1. DG medium and low pressure: Flow rate: 20~300m³/ h Matching power: 15~450kW
Head: 85~684m Inlet diameter: DN65~DN200 Medium temperature: ≤ 105℃
2.DG secondary high pressure: Flow rate: 15 ~ 300 m³/ h matching power: 75~1000kW
Head: 390~1050m Inlet diameter: DN65~DN200 Medium temperature: ≤ 160℃
3. DG high pressure: Flow rate: 80 ~ 270 m³/h
Head: 967~1920m Inlet diameter: DN100~DN250 Medium temperature: ≤ 170℃
Main application
1. The conveying medium temperature of DG medium and low pressure boiler feed water pump is not more than 105℃, which is suitable for small boiler feed water or conveying similar hot water.
2. The conveying medium temperature of DG type sub-high pressure boiler feed water pump is not more than 160℃, which is suitable for small boiler feed water or conveying similar hot water.
3. The conveying medium temperature of DG high-pressure boiler feed water pump is not more than 170℃, which can be used as high-pressure boiler feed water or other high-pressure fresh water pumps.
